Our measurements inform your decisions



Measure

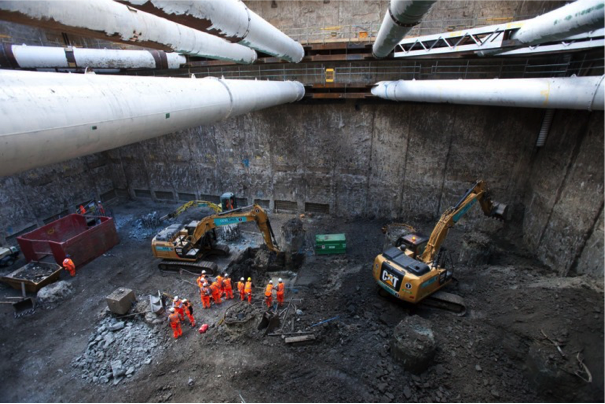

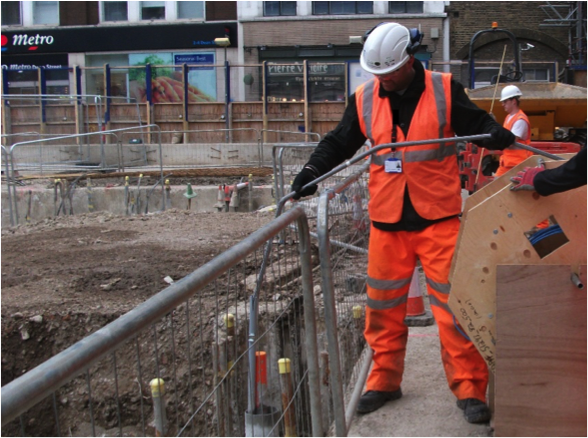

Geotechnical Observations installed SAA displacement monitoring equipment into the concrete retaining walls at Crossrail’s Tottenham Court Road Western Ticket Hall and monitored the deflections of the walls as the soil was removed from inside the resulting box.



Inform


The measured deflections were significantly smaller than those that had been predicted using the specified design parameters.

Decide

A decision was taken to remove the lowest supporting prop, which facilitated more room for excavating (11m as opposed to 3m) at the bottom of the excavation and reduced the programme by this saved 28 days on the programme. This brought about a saving of £715,000 after taking account of the cost of the monitoring (approximately £200,000).

We believe that the key to the effective use of instrumentation for monitoring the performance of structures  lies in first understanding the behaviour of the structures.


Find out more about the impact of monitoring and how we can help you by getting in touch.
